Dell PowerVault MD DAS Storage

Purpose-built for DAS scalability, accelerated performance and reliability.

MD Series of direct-attach storage enclosures designed to maximize your server storage capacity. The MD1400 and the MD1420 offer low-cost storage expansion with double the bandwidth using 12Gbps SAS connectivity to support your growing application workloads.

The MD1400 and MD1420 models are designed to scale capacity behind Dell’s PowerEdge servers, without busting your storage budget. When cost is an issue, and you need to optimize your cost per terabyte, the MD Series offers a simple and cost-effective solution while ensuring your performance requirements are met.



Technical Specification:

Product specifications MD1400 MD1420

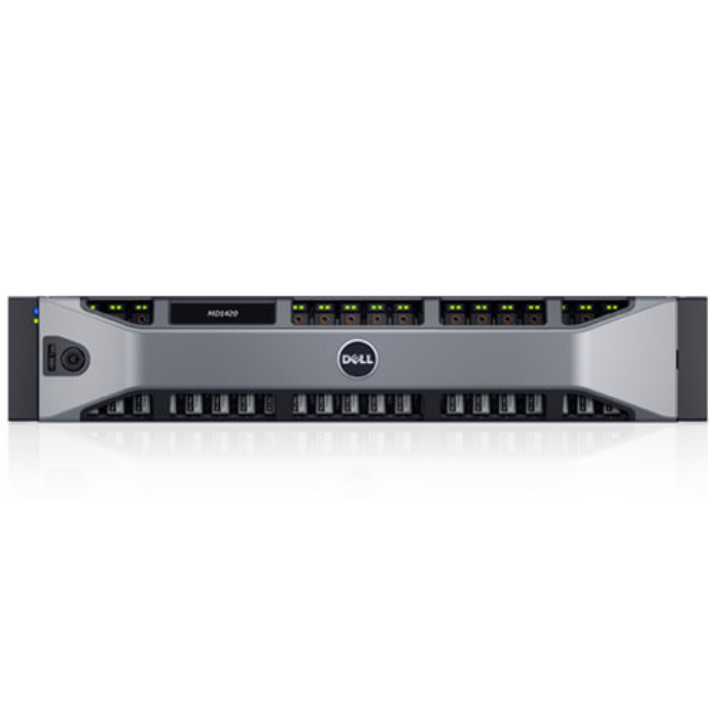

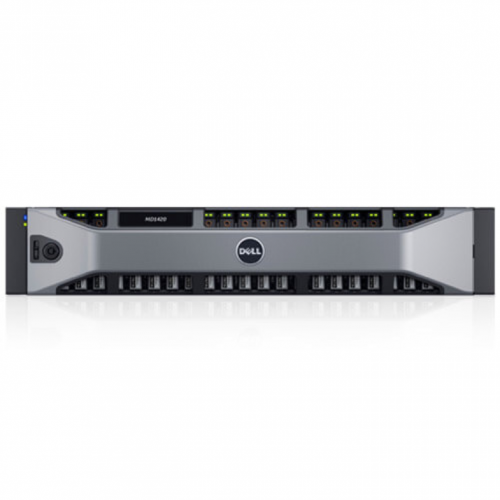

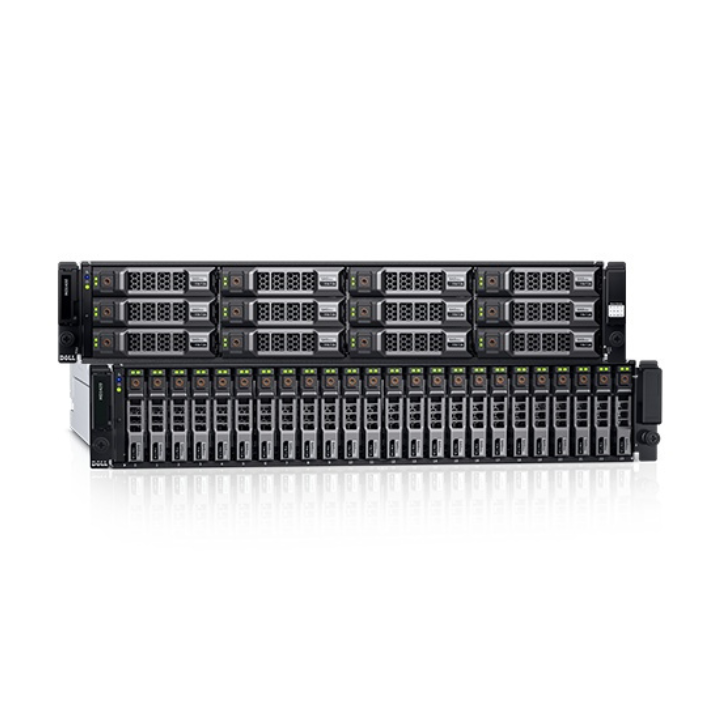

Base Dell Storage MD1400, 12 HDs 3.5″, Rackmount, 2Us Dell Storage MD1420, 24 HDs 2.5″, Rackmount, 2Us
Drives Up to 12 hot-pluggable 3.5” or 2.5” drives (2.5” available with adapter) Up to 24 hot-pluggable 2.5” drives
Drive performance and capacities 3.5” and 2.5” NL-SAS, 2.5” SAS and 2.5” SSD drives 2.5” NL-SAS, SAS and SSD drives
Maximum capacity per enclosure Up to 168TB when using 12 x 14TB NL-SAS 3.5” HDDs Up to 57.6TB when using 24 x 2.4TB NL-SAS 2.5” HDDs
Expansion capabilities PERC H830/H840 HBA enables expansion to 8 enclosures, PCIe 3.0, 12Gbps SAS, dual -port, 4 ports per enclosure

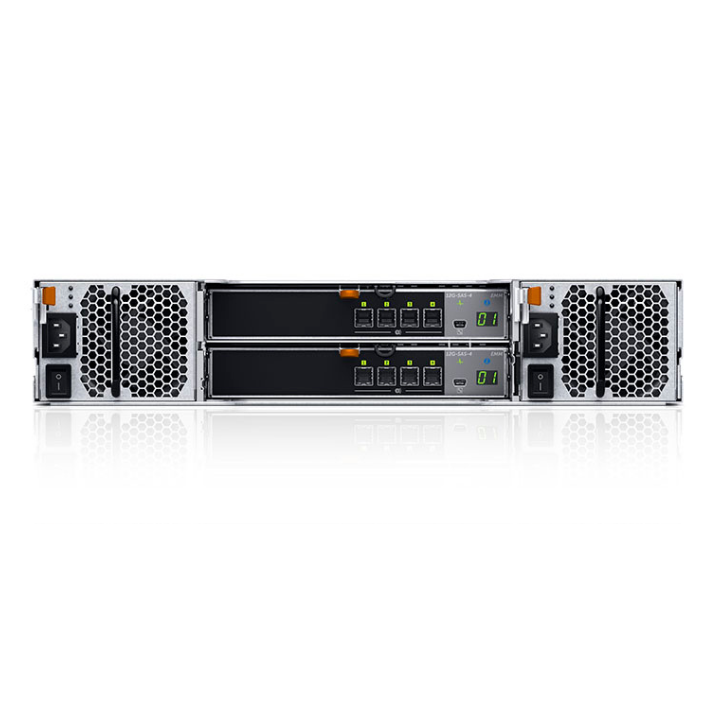

Connectivity 4 mini-SAS HD connector for connection to the host or expansion
