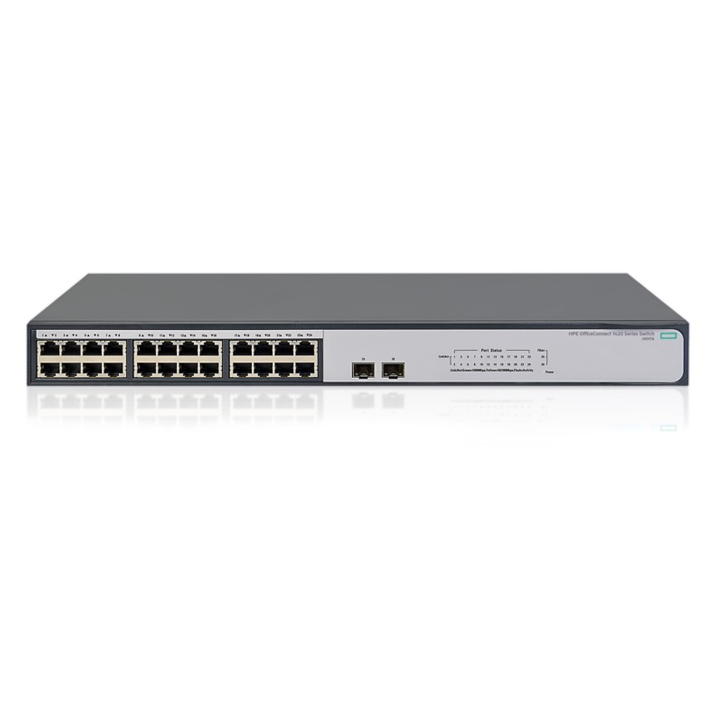

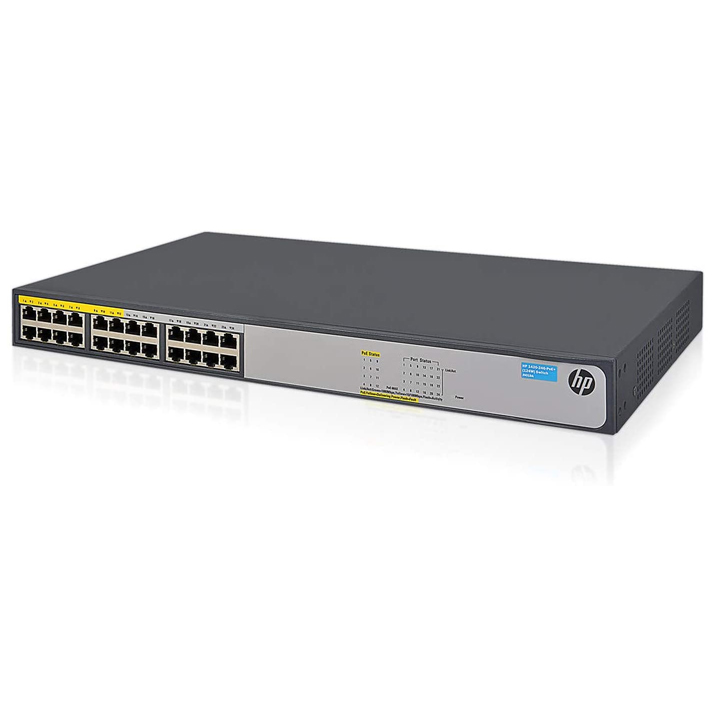

Product Over View:  HPE 1420 Switch

The HPE Office Connect 1420 Switch Series consists of unmanaged Gigabit Ethernet switches, for small businesses and others looking for plug-and-play basic Layer 2 connectivity for their network, including low-cost PoE+ and 10-Gigabit uplink models. The 1420 Switch Series includes nine Gigabit switches: 16-port 10/100/1000, 24-port 10/100/1000 with two SFP Gigabit ports, 24-port 10/100/1000 ports of which 12 are Power over Ethernet (PoE+) enabled with a total PoE power budget of 124W, and 24-port 10/100/1000 with two SFP+ 10GbE ports. . Hewlett Packard Enterprise has innovated and combined the latest advances in silicon technology to bring you some of the most power-efficient switches. . HPE Office Connect 1420 switches come with a limited lifetime warranty.

Product Highlights:

  • Unmanaged plug-and-play Gigabit Ethernet switching
  • Green features for low power consumption
  • Fanless design for silent operation
  • Quality of Service capabilities for improved network efficiency
  • Gigabit Ethernet 10/100/1000 Connectivity supports high-speed Ethernet connections over highly affordable copper Category 5 cabling.
  • 10-Gigabit fibre connectivity Future-proof 10-Gigabit technology allows high-speed fibre connection to servers or other switches, with connection flexibility using optional SFP+ or SFP transceivers.
  • IEEE 802.3at Power over Ethernet (PoE+) provides up to 30 W per port, which allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af compliant end device; reduces the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments (for PoE model)
  • Limited lifetime warranty



Technical Specification

Title HPE 1420 5G Switch(JH327A) HPE 1420 8G Switch(JH329A) HPE 1420 16G Switch(JH016A) HPE 1420 24G Switch(JH708B) HPE 1420 24G 2SFP Switch(JH017A) HPE 1420 24G 2SFP+ Switch(JH018A) HPE 1420 24G PoE+ (124W) Switch(JH019A)
I/O ports and slots 5 RJ-45 autosensing 10/100/1000 ports  Duplex: half or full 8 RJ-45 autosensing 10/100/1000 ports  Duplex:  half or full  Supports a maximum of 8 autosensing 10/100/1000 ports 16 RJ-45 autosensing 10/100/1000 ports. Duplex: half or full. full only Supports a maximum of 16 autosensing 10/100/1000 ports 24 RJ-45 autosensing 10/100/1000 ports Duplex: half or full. full only Supports a maximum of 24 autosensing 10/100/1000 ports 24 RJ-45 autosensing 10/100/1000 ports Duplex: half or full. full only 2 SFP 100/1000 Mbps ports Support a maximum of 24 autosensing 10/100/1000 ports plus 2 SFP ports. 24 RJ-45 autosensing 10/100/1000 ports Duplex: half or full. full only 2 fixed 1000/10000 SFP+ ports Support a maximum of 24 autosensing 10/100/1000 ports plus 2 SFP+ ports. 24 RJ-45 autosensing 10/100/1000 ports Duplex:  half or full. full only Supports a maximum of 24 autosensing 10/100/1000 ports.
Memory and processor Packet buffer size: 1 Mb Packet buffer size: 1.5 Mb 1 MB flash; packet buffer size: 512 KB 8 MB flash; packet buffer size: 1.5 MB 1 MB flash; packet buffer size: 512 KB
Management and Monitoring New, cost-effective, unmanaged gigabit switches in 5, 8 and 24 Gb-port configurations with and without PoE+..Energy Efficient Ethernet for low power consumption.Plug-and-play with fully automated functions and zero ongoing maintenance.Quality of Service (QoS) and flow control for improved network efficiency.
Throughput up to 7.4 Mpps up to 11.8 Mpps up to 23.8 Mpps (64-byte packets) up to 35.7 Mpps (64-byte packets) up to 38.7 Mpps (64-byte packets) up to 65.5 Mpps (64-byte packets) up to 35.7 Mpps (64-byte packets)
Switching Capacity 10 Gbps 16 Gbps 32 Gbps 48 Gbps 52 Gbps 88 Gbps 48 Gbps
Warranty Limited Lifetime Warranty. See www.hpe.com/networking/warrantysummary for warranty and support information
