Aruba Access Point 300 Series


SKU: Aruba Access 300 Categories: , ,

Key Features:

Aruba AP-303 (RW) Access Point:
– Affordable mid-range Aruba 303 campus access point delivers high performance 802.11ac with MU-MIMO (Wave 2)
– Ideal for medium density enterprise environments such as schools, retail branch offices hotels etc
– Supports 802.3af power, to improve their work efficiency and productivity with the lowest TCO.
– Up to 1.2 Gbps aggregate peak data rate.

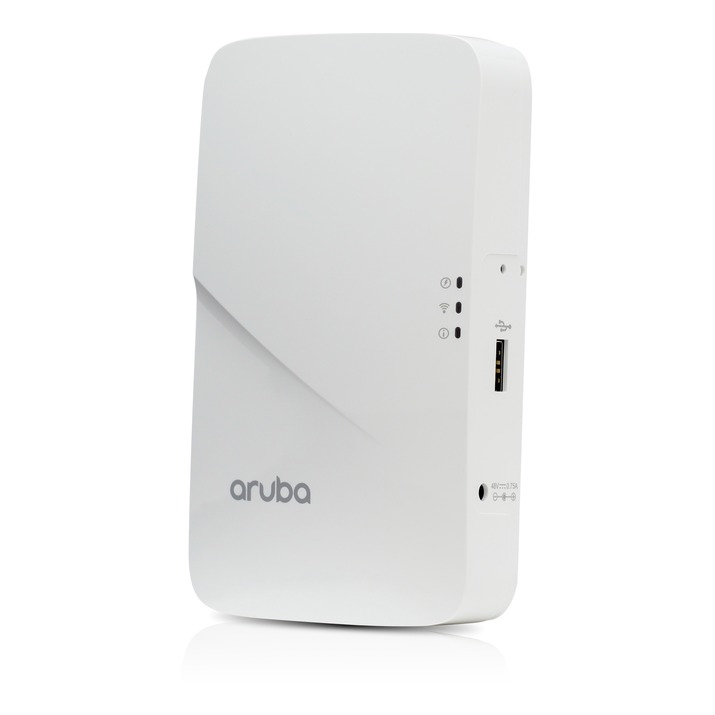

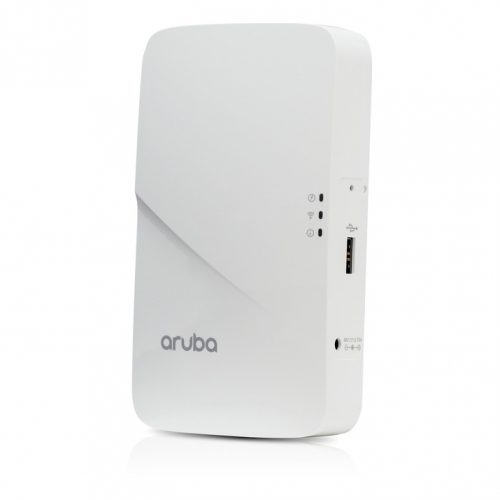

Aruba AP -303H (RW) Access Point:
– Dual Radio High-performance 802.11ac Wave 2 (Wi-Fi 5) access point for hospitality and branch offices
– The Aruba 303H Series provides integrated Bluetooth capabilities to enable Meridian and IoT-based location services, asset tracking,   and mobile engagement services
– Combine wireless and wired access in a single, compact device.
– Wall-jack and desk stand mounting options

Aruba IAP-305 (RW) Instant Access Point:
– Supports multiuser MIMO with a total of three integrated omni-directional down tilt dual-band antennas.
– Maximum concurrent data rate of 1,300 Mbps in the 5GHz band and 2.4GHz 802.11n 2×2 MIMO (300 Mbps max rate).

Aruba IAP-315 (RW) Instant Access Point:
– High performance and high-density Wave 2 supports multi-user MIMO (MU-MIMO) and 4 spatial access 802.11ac point streams (4SS)
– Supports: 5GHz 802.11ac 4×4 MIMO (1,733 Mbps max rate) and 2.4 GHz 802.11n 2×2 MIMO (300 Mbps max rate) radios, with a total of four integrated omni-directional down tilt dual-band antennas
– Maximum concurrent data rate of 1,733 Mbps in the 5 GHz band and 300 Mbps in the 2.4 GHz band.

Aruba AP 365 (RW) Outdoor Access Point:
– Entry-level outdoor and warehouse connectivity with Wi-Fi 5 (802.11ac Wave 2)
– maximum aggregate data rate of 1.2 Gbps (1.167 Gbps), the 360 Series comes with multi-user MIMO (MU-MIMO), 4 spatial streams (4SS),
– Gigabit Wi-Fi to outdoor and extreme environments.
– 1.2 Gbps of maximum throughput
– IoT-ready with integrated Bluetooth Low Energy (BLE)

Technical Specification
Aruba AP -303H (RW) Aruba AP-303 (RW) Aruba IAP-305 (RW) Aruba IAP-315 (RW) AP – 365 (RW)
Product Name AP – 303H (RW) Unified AP – HP Aruba AP-303 (RW) Dual 2×2:2 MU-MIMO Radio Internal Antennas Unified Campus AP Aruba Instant IAP-305 (RW) 802.11n/ac Dual 2×2:2/3×3:3 MU-MIMO Radio Integrated Antenna AP Aruba Instant IAP-315 (RW) 802.11n/ac Dual 2×2:2/4×4:4 MU-MIMO Radio Int Antenna AP AP – 365 (RW) Outdoor AP-HP
Manufacturer Part Number JY678A JZ320A JX945A JW811A JX966A
Wireless LAN Standard IEEE 802.11ac
Frequency Band 5 GHz & 2.40 GHz
Total Number of Antennas 2 2 3 4 4
Number of Internal Antennas 2 2 3 4 4
MIMO Technology MIMO Technology & Beamforming Technology
Beamforming Technology
Interfaces Gigabit ethernet with 1 number of Network ports, PoE PD port, USB with Management Port
Warranty Limited Lifetime Warranty


Call Amanveer at +91-11-69039090 at extn. 101 to discuss or email us at
